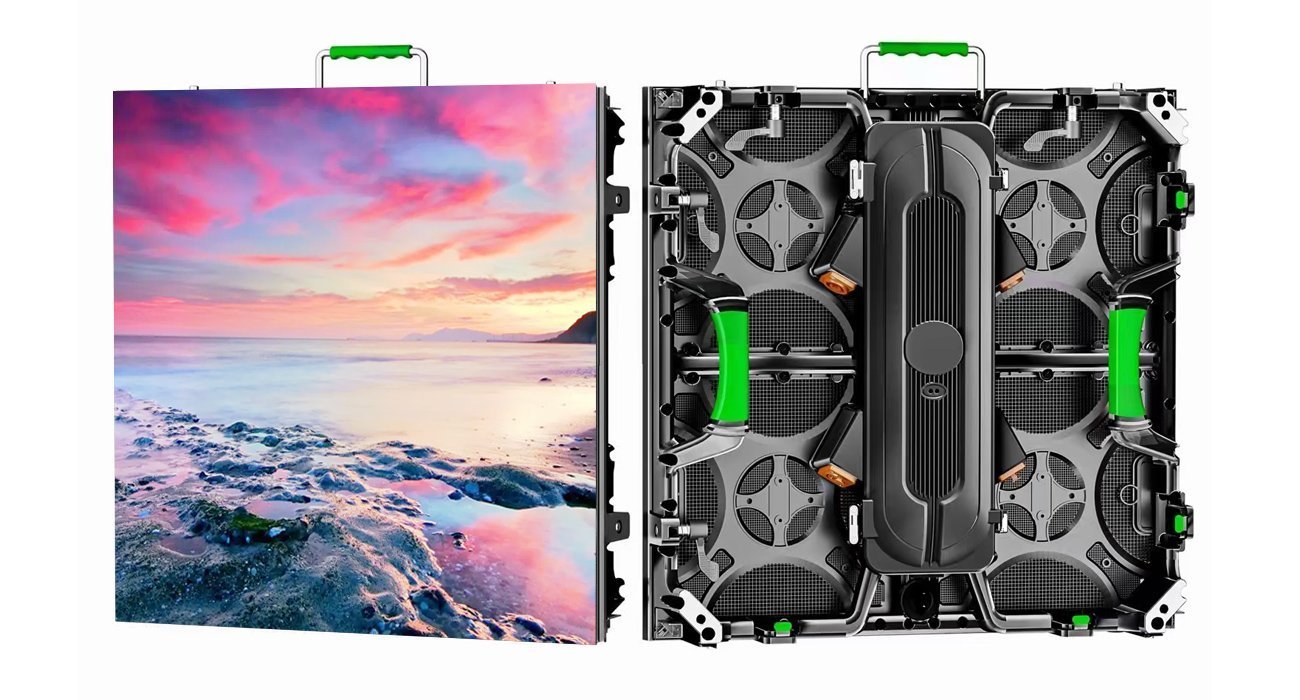

Ea500C2 Rental Led Display
Experience the Excellence of the EA500C2 Rental LED Display
Introducing the EA500C2 Rental LED Display, designed with cutting-edge technology to enhance your visual presentations. Whether you’re planning an outdoor event, a concert, or a corporate exhibition, this LED display is your go-to solution for that high-impact visual effect that leaves audiences in awe.
Quick and Efficient Assembly Process
One standout feature of the EA500C2 Rental LED Display is its innovative quick-lock mechanism. This allows for swift assembly with two user-friendly locks located on both sides of the cabinet. You won’t just save time; you’ll also achieve a better and more seamless screen flatness. Imagine setting up your display in record time while ensuring a professional appearance!
Additionally, the quick keyhole design at the back further accelerates the installation process. It’s all about efficiency, enabling event coordinators to focus on what truly matters—captivating their audience.
High Precision Curve Lock for Flawless Displays
Forget the old, cumbersome curved locks! The EA500C2 employs a high precision curve lock system that gives you better control and accuracy. This design allows for effortless rotational adjustments, making it incredibly easy to modify the curve degree according to your specific needs. Perfectly curved displays not only look visually striking but also enhance the overall viewer experience.
Enhanced Protection with Corner and Edge Safeguards
Transporting and setting up LED displays can be risky. That’s why the EA500C2 comes equipped with corner protectors at each end to shield the LED panels from damage. These features ensure that your equipment remains secure throughout transport, installation, and operation. Moreover, the anti-collision feet at the bottom add another layer of protection, safeguarding the edges of the LED module for complete peace of mind.
Stackable and Versatile Design
Versatility is key when choosing an LED display for various events. The EA500C2 cabinets can be easily stacked, allowing you to create a larger display for bigger audiences. Pair it with other models like the EA1000C2 Series for a multi-layered visual masterpiece that’s sure to grab attention.
Lightweight and Easily Manageable
Weighing in at just 7KG per cabinet, the EA500C2 Rental LED Display is lightweight and designed for easy handling. This means one person can manage the installation, disassembly, and maintenance autonomously. Say goodbye to cumbersome displays that require multiple hands—your setup becomes significantly easier and less time-consuming.
Built to Last: IP65 Rated for Outdoor Use
For those planning outdoor events, durability is essential. The EA500C2 Rental LED Display boasts an IP65 rating, making it both dustproof and waterproof. This means it can withstand harsh weather conditions, so you can focus on your event without worrying about equipment failure. The die-cast aluminum frame is rust-resistant, ensuring long-lasting performance no matter the setting.
Seamless Display for Stunning Visuals
Enjoy a seamless viewing experience with high-precision LED technology. The EA500C2 allows for flawless splicing, making images and videos come to life like never before. You’ll captivate your audience with stunning visuals, offering them an immersive experience that feels almost tangible.
Versatile Display Configuration
With compatibility for 250x250mm standard modules, the EA500C2 Rental LED Display makes assembly and maintenance effortless. If you need to adjust pixel spacing, simply swap out the modules. This flexibility ensures you’re always prepared, regardless of the project at hand.
Wide Viewing Angles for Maximum Engagement
Reach every corner of your audience with an impressive viewing angle of up to 120°. This ultra-wide feature guarantees that everyone will enjoy clear and vibrant images, no matter where they’re seated. The EA500C2 ensures that your message resonates with all viewers, enhancing engagement and retention.
Conclusion
The EA500C2 Rental LED Display is more than just an LED screen; it’s a comprehensive solution tailored to meet the demands of today’s fast-paced, visually-driven events. From rapid assembly to durability against outdoor conditions, this display checks all the boxes. Whether you’re looking to enhance your corporate presentations or attract attention at an outdoor festival, the EA500C2 stands out as a leading choice for your rental needs. Reach out today to discover how the EA500C2 can elevate your next event!
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|
| Model | EA500C2-OP2.6 | EA500C2-OP2.97 | EA500C2-OP3.91 | EA500C2-OP4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/16 | 1/21 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 | 7 | 7 |
| Brightness (CD/㎡) | ≥5,000 | ≥5,000 | ≥6,000 | ≥6,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 | P4.81 |
|---|---|---|---|---|---|---|
| Model | EA500C2-iP1.95 | EA500C2-iP2.5 | EA500C2-iP2.6 | EA500C2-iP2.97 | EA500C2-iP3.91 | EA500C2-iP4.81 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2020 | SMD2121 |
| Density (Pixels/㎡) | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Brightness (CD/㎡) | ≥1000 | ≥1000 | ≥1200 | ≥1,000 | ≥1,200 | ≥1,000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 | 560 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
